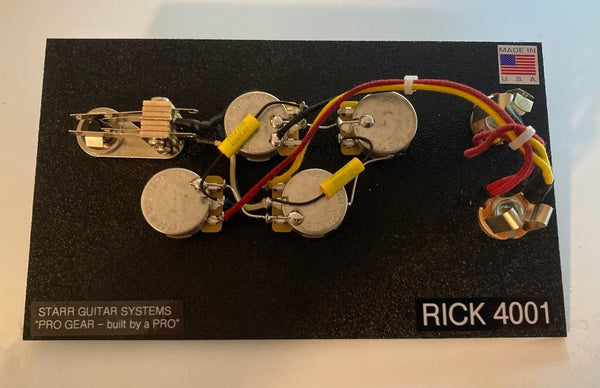

STARR GUITAR SYSTEMS wiring harness upgrade for Rickenbacker 4001 Bass.
Included in each SGS Rickenbacker 4001 Bass System:
2) CTS 250K solid shaft volume pots
2) CTS 500K solid shaft tone pots
1) Switchcraft L style 3 way switch2) Switchcraft input jacks, including Rick-O-Sound
2) Mallory .047 Capacitors 630 volt
7) Gavitt vintage style cloth wires: red, yellow, blue, black, white
3) 20 gauge solid tinned copper ground wires
1) Assembly board
1) Wiring diagram (see photo section)
Each set is assembled, hand wired and soldered in the USA using premium parts. Upgrade your import bass electronics, or replace your old worn out parts with these premium replacement units! All sets are signed by Dave Starr and have their own serial number. Free Shipping in the USA!
Note: Most guitars manufactured overseas in South Korea, Japan, China, Indonesia and Mexico use 6mm metric pots and have metric sized holes drilled. You will need to enlarge the pot holes to 3/8" to fit these CTS pots properly.
Note: Most guitars manufactured overseas in South Korea, Japan, China, Indonesia and Mexico use 6mm metric pots and have metric sized holes drilled. You will need to enlarge the pot holes to 3/8" to fit these CTS pots properly.
